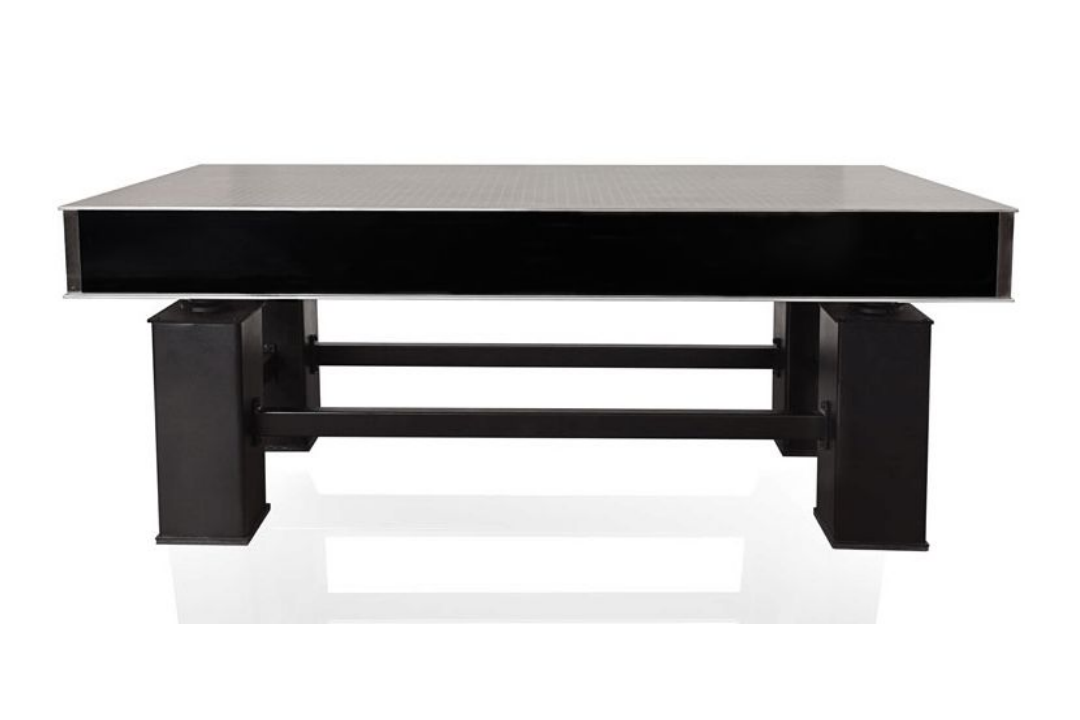

toone阻尼隔振光學平臺?
?應用領域:?
適合于現代光學、物理力學、激光電子、光通訊試驗及儀器搭載等領域應用
產品特點:?
◆至一科技精密阻尼隔振光學平臺依托于航空工業人員背景研發制造的表面帶陣列螺紋孔的臺桌型隔振光學平臺，集成國標級阻尼橡膠墊，具有良好隔振效果。
◆臺板采用蜂窩芯夾板結構，具有重量輕、高剛度、高阻尼等優點，上面板為1cr17優質高導磁不銹鋼，經精密研磨處理，表面平面度高?；匦蚰スに嚽宄叄_到無反射、亞光效果，面板具有M6螺紋孔，易于固定光學元件。?
◆高分子復合橡膠墊提供對高頻振動的隔振能力。
◆隔振支撐為優質鋼管焊接而成，整體堅固可靠，可選用安裝標準移動腳輪，方便在工作場所內移動。
◆獨特的水平調節機構，可以實現輕松水平調節的目的，穩定性能高。
?
技術指標:
| 平面度 | 0.05mm/m2 |
| 表面粗糙度 | < 0.8μm |
| 固有頻率 | 水平方向: 3.5Hz~6Hz；垂直方向: 3.5Hz~6Hz |
| M6螺紋孔/孔間距 | 25X25mm（常規） |
| 振幅 | < 5μm |
?
產品型號：（可根據客戶要求定制不同尺寸）
型號 | 規格（mm） | 支撐數量 | 面板厚度 | 臺面厚度 | 螺紋孔/孔距 |
ZI-ZN-06-06 | 600x600x800 | 4 | 6mm | 50mm | M6/25X25mm |
ZI-ZN-075-075 | 750x750x800 | 4 | 6mm | 50mm | M6/25X25mm |
ZI-ZN-09-06 | 900x600x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-ZN-10-08 | 1000x800x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-ZN-12-08 | 1200x800x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-JM-12-09 | 1200x900x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-ZN-15-09 | 1500x900x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-ZN-16-10 | 1600x1000x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-15-12 | 1500x1200x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-18-10 | 1800x1000x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-18-12 | 1800x1200x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-20-10 | 2000x1000x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-20-12 | 2000x1200x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-24-12 | 2400x1200x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-30-12 | 3000x1200x800 | 6 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-30-15 | 3000x1500x800 | 6 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-35-15 | 3500x1500x800 | 6 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-40-15 | 4000x1500x800 | 6 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-50-15 | 5000x1500x800 | 10 | 10mm | 300mm | M6/25X25mm |
ZI-ZN-60-15 | 6000x1500x800 | 12 | 10mm | 300mm | M6/25X25mm |
?
